Entities

Entities are Dreamlab's fundamental game objects—similar to Unity GameObjects or Godot Nodes.
They

• own a Transform (position / rotation / scale / z-layer)
• can nest to form a hierarchy
• gain behavior through attached Behavior scripts
• sync automatically when placed under the shared world root

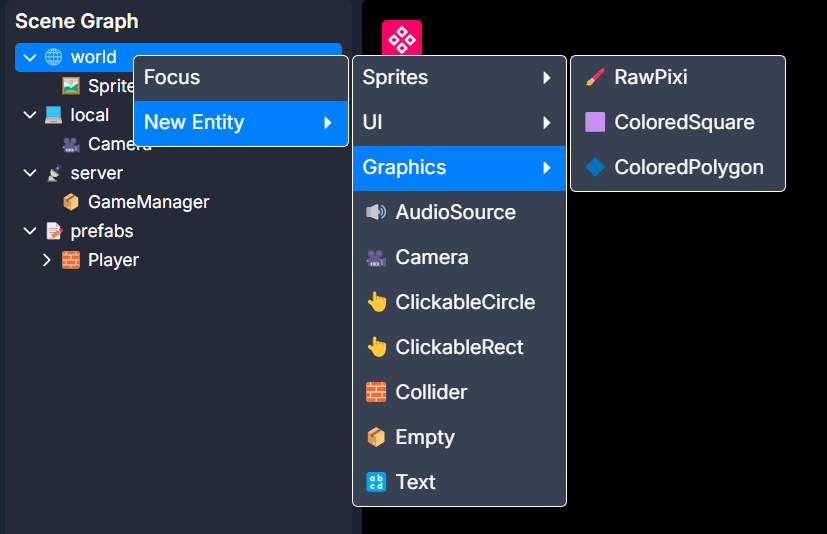

Entities are usually added from the editor's right-click menu:

---

1. Quick start - spawning by script

Create a brand-new entity

// Spawn an Empty into the shared world root
const pivot = this.game.world.spawn({
  name: "Pivot",
  type: Empty,
  transform: { position: { x: 4, y: 1 } },
});

Clone a prefab at runtime

// “Crate” lives under prefabs/
// cloneInto returns the new instance
const crate = this.game.prefabs._.Crate.cloneInto(this.game.world, {
  name: "Crate." + crypto.randomUUID(),
  authority: this.game.network.self,  // I control this crate
});
crate.pos.set(2, 0);

cloneInto() duplicates the entity (plus all children & behaviors) and registers it in the target root.

---

2. Core concepts

Feature	What / Why
Roots	Decide where an entity exists. See the Scenes & Roots page.
Behaviors	Add logic to the entity. See the Behaviors page.
Authority	Peer that owns simulation authority → entity.authority or takeAuthority().
Events	Pub-sub events such as EntityDestroyed, EntityChildSpawned.
Values	Strong-typed, optionally replicated props. See the Synced Values and Adapters page.
Transform API	entity.transform or shortcuts entity.pos, entity.z.

Accessing entities by name

root._.<Name> gives you a quick reference to any direct child under a root:

const cam = this.game.local._.Camera; // generic Entity

The proxy returns an untyped Entity, so if you want type-specific methods (e.g. Camera.zoom), cast it:

// get the local camera with full IntelliSense
const cam = this.game.local._.Camera.cast(Camera);

cam.zoom = 2;            // Camera-only API

Dot-path chains work for grandchildren too:

// Prefab » Player » Health
const health = this.game.prefabs._.Player._.Health.cast(RichText);
health.text = "HP: 100";

Names with spaces or symbols- If the entity's name isn't a valid JavaScript identifier (contains spaces, hyphens, etc.) use bracket access:

// Entity is literally named “My Entity”
const ent = this.game.world._["My Entity"];

The lookup throws if the child name is wrong, so check your spelling against the scene graph panel.

---

3. Entity catalog (common types)

note

This table is a quick reference—open the editor for the full, up-to-date list.

General

Entity	Purpose
AudioSource	Play sounds (optionally positional).
Camera	Viewport controller—see the Camera page.
CharacterController	Capsule collider with built-in movement checks.
Clickable	Emits a signal when clicked.
Collider	Basic physics collider.
ComplexCollider	Polygon collider formed by 3 + child empties.
Empty	Transform only—good for markers, parents, manager scripts.
RichText	Draw PIXI rich text in-world.
Rigidbody	Simulated physics body; attach one or more colliders.
Tilemap	Create Tilemaps using a predefined tileset

Sprites

Entity	Purpose
AnimatedSprite	JSON spritesheet playback with speed / frame control
Sprite	Draw a single image
TilingSprite	Sprite that tiles its texture

UI

Entity	Purpose
UILayer	Full-screen DOM tree—ideal for HUDs
UIPanel	DOM tree fixed in world space (nameplates, signs, etc.)

Graphics

Entity	Purpose
RawPixi	Advanced: draw via PIXI Graphics API
ColoredSquare	Solid-color rectangle
ColoredPolygon	Solid-color regular polygon

---

4. Common entity events

Dreamlab uses events for entity lifecycle—subscribe with entity.on(Event, handler).

Event	Fires when…
EntitySpawned	the entity is first created (constructor done)
EntityDestroyed	the entity is about to be removed
EntityChildSpawned	a direct child is added
EntityDescendantDestroyed	any level of descendant gets destroyed
EntityRenamed	entity.name changes
EntityReparented	entity.parent changes
EntityEnableChanged	the effective enabled state toggles

5 · Entities

note

This is a quick reference—open the editor for the full, up-to-date entity list.

🔊 AudioSource

Howler.js under the hood—handles both UI SFX and positional audio.

Value	Purpose
clip	Path to OGG / MP3 / WAV.
volume	0 … 1
loop	Loop forever.
minRange	Distance (m) before attenuation starts.
maxRange	Max audible distance; -1 = infinite.
falloff	0 … 1 how quickly volume drops off.
stream	Stream large music tracks vs. preloading.

const sfx = this.entity.cast(AudioSource);
sfx.clip = "res://sfx/hit.ogg";
sfx.play();

---

🎥 Camera

Reference

Detailed documentation is available on the Camera page.

The Camera is a local-only entity that controls what the player sees.

Key value	Purpose / default
active (bool)	When true, becomes the current viewport. Only one Camera can be active at a time.
zoom (number)	1 = 1 unit ≈ 1 metre on screen. Higher zooms in.
smooth (seconds)	How long interpolation takes to catch up to the real transform. 0 = no smoothing.
lockAspectRatio	Lock vertical / horizontal FOV, e.g. [16, 9].
scaleFilterMode	"nearest" or "linear"—overrides PIXI scale mode for crystal-clear pixel-art.

---

🚶 CharacterController

Reference

Detailed documentation is available on the Physics page.

Kinematic platformer-style movement.

API	Description
.isGrounded (getter)	true when touching the ground.
.correctedPosition	Position after resolving collisions.
.teleport = true	Skip collision check on the next frame.

const ctrl = this.entity.cast(CharacterController);

if (ctrl.isGrounded && this.inputs.getKey("Space")) {
  ctrl.pos.y += 3;          // jump impulse
  ctrl.teleport = true;     // skip one collision frame
}

---

👆 Clickable

Creates an invisible hit-box that turns any entity into a UI button or trigger.

Value / getter	Details
active	Disable to ignore cursor & clicks.
shape	"Rectangle" (default) or "Circle".
width / height	Rectangle size in metres. (Only when shape = "Rectangle")
radius / innerRadius	Outer & inner radii for ring-style targets. (Only when shape = "Circle")
clicked (getter)	true while the mouse button is held down over the entity.
hover (getter)	true when the cursor is inside the bounds.

Note — Clickable automatically changes the game canvas cursor to a pointer when any active Clickable is under the mouse.

---

🧱 Collider

Reference

Detailed documentation is available on the Physics page.

A Collider is a shape the physics engine can query.
Attach to a Rigidbody or leave loose as a static trigger.

Key value	Purpose
shape	"Rectangle" | "Circle" (capsule WIP)
isSensor	true → overlap events only; no collisions.
mass	Used only if parented to a Rigidbody.

---

🧱 ComplexCollider

Reference

Detailed documentation is available on the Physics page.

A concave (multi-polygon) collider built from its children’s positions.
Perfect for arbitrary terrain outlines.

Value	Purpose
isSensor	Trigger only, no physical response.
mass	Used if parented to a Rigidbody.

How it works

1. Sorts direct children (Child.0, Child.1, …).
2. Runs poly-decomp to split into convex pieces.
3. Creates one Rapier collider per piece (auto-updates on transform / re-parent).

Tip: Keep the child points roughly in order (clockwise or CCW) for best results.

---

📦 Empty

An entity with only a Transform.
Use it as a pivot, folder, or to attach scripts that don't need graphics / physics.

---

🔡 RichText

Renders a PIXI Text with full CSS-like styling.

Value	Details
text	Plain string or BBCode (coming soon).
fontFamily	Any web-safe or imported font (async-loads on first use).
fontSize	In pixels. Remaps to metres via entity scale.
fontStyle	"normal" | "italic"|"oblique"`.
fontWeight	"bold" or numeric 100–900.
align	"left", "center", "right" (auto-sets anchor).
color	Fill colour.
stroke	Toggle outline; reveals strokeColor, strokeWidth, strokeJoin.
scaleFilterMode	"default" → inherit Camera; otherwise "nearest" / "linear".

const label = this.game.local._.ui.spawn({ name: "label", type: RichText });
label.text        = "FPS: 60";
label.fontSize    = 24;
label.color       = "#00ff00";
label.stroke      = true;
label.strokeColor = "black";

---

⚙️ Rigidbody

Reference

Detailed documentation is available on the Physics page.

Creates a Rapier RigidBody and re-parents all child Colliders automatically.

Value	Description
type	"dynamic" (default) or "fixed".

---

🗺️ Tilemap

Reference

Detailed documentation is available on the Tilemap page.

A grid of palette IDs rendered via an atlas. Great for terrains & dungeons.

Handy method	What it does
setTile(x, y, paletteId?)	Draw / erase a cell (undefined = erase)
getTile(x, y)	Return TileData or undefined.
getTileAtPoint(worldPos)	Ray-cast the cursor to a tile.
clearTiles()	Erase everything.
tiles() (generator)	Iterate { x, y, tile } of filled cells.

---

🖼️ AnimatedSprite

Plays frames from JSON spritesheets or chops a grid into frames on the fly.

Value	Details
jsonSpritesheet	Path to .json exported by Aseprite / TexturePacker.
spritesheet	Plain PNG; sliced by frameDimensions.
speed	Frames per second (default 0.1).
startFrame/endFrame	Clamp playback range; endFrame = -1 ➜ to last frame.
loop	When false, stops on last frame.

const anim = this.entity.cast(AnimatedSprite);
anim.spritesheet = "res://run.png";
anim.frameDimensions.set(128, 128);
anim.speed = 0.2;

---

🖼️ Sprite

Draw a single texture, with optional letter-box preserve-aspect.

Value	Purpose
texture	Image path. Empty ⇒ white 1 × 1 pixel.
width / height	Target size in metres.
preserveAspectRatio	true ⇒ maintains original proportions (letterbox).
tint / alpha	Standard PIXI tint & transparency.

---

🖼️ TilingSprite

Repeats a texture infinitely—ideal for parallax backdrops, water, conveyor belts…

Value	Details
texture	Tile image.
tilePosition	Scroll offset—animate for parallax.
tileScale	Per-axis scaling before fit into entity width/height.
tileRotation	Rotation of the pattern in radians.
width / height	Drawn size in metres.
tint / alpha	Standard PIXI properties.

const water = this.game.local._.MyTilingSprite.cast(TilingSprite);
water.onFrame = () => water.tilePosition.x += 0.02; // gentle flow

---

🎨 UILayer

Reference

Detailed documentation is available on the User Interface page.

Full-screen DOM overlay—great for HUDs, menus, or drag-and-drop editors.

• Lives in its own Shadow DOM to avoid CSS bleed.
• Pointer-events are disabled by default; enable per-element.
• dom → ShadowRoot, element → root <div> inside the layer.

Position & scale follow the canvas, not the world.

---

🎨 UIPanel

DOM anchored to an entity in world space (nameplates, shop signs, speech bubbles).

Feature	How it works
Screen lock	Re-projects each frame via Camera.worldToScreen().
Transform aware	Honors entity position/rotation/scale (plus Camera zoom).
Shadow DOM	Same isolation as UILayer.

---

🖌️ RawPixi

Reference

Detailed documentation is available on the Rendering with Pixi page.

Low-level access to PIXI—attach your own Graphics / Sprite objects.

const raw = this.game.local.spawn({ name: "graphic", type: RawPixi });

// Draw a circle each frame
raw.onFrame = function () {
  if (!this.container) return;
  const g = this.container.getChildAt(0) as PIXI.Graphics ?? new PIXI.Graphics();
  if (!g.parent) this.container.addChild(g);

  g.clear().circle(0, 0, 0.5).fill("hotpink");
};

RawGraphics is an alias kept for legacy scenes; new projects should use RawPixi.

---

🟩 ColoredSquare

Simplest possible PIXI rectangle.

Value	Details
width / height	Size in metres
color	Fill colour
tint	Tint multiplier

const box = this.game.world.spawn({ name: "square", type: ColoredSquare });
box.width  = 5;
box.height = 0.5;
box.color  = "#ffffff";

---

🟢 ColoredPolygon

Draws a filled n-gon directly in PIXI. Great for quick proto art or hit flashes.

Value	Details
sides	3 – 1000 edges.
width / height	Size in metres (scales with entity transform).
color	Fill colour (#rrggbb, rgba(), or CSS name).
tint	Post-multiply tint (palette swaps / hit-flash).

const poly = this.game.local.spawn({ name: "hexagon", type: ColoredPolygon });
poly.sides = 6;          // hexagon
poly.width = poly.height = 2;
poly.color = "#ffcc00";
poly.tint  = "#ff8800";
